[CCNA]DHCP Settings(DHCP 셋팅 문제)

반응형

1. What are two roles of the Dynamic Host Configuration Protocol(DHCP)? (Choose two)

    (동적 호스트 구성 프로토콜(DHCP)의 두 가지 역할은 무엇입니까? (2개 선택))

A. The DHCP server offers the ability to exclude specific IP addresses from a pool of IP addresses
    (DHCP 서버는 IP 주소 풀에서 특정 IP 주소를 제외하는 기능을 제공한다.)
B. The DHCP client can request up to four DNS server addresses.

    (B. DHCP 클라이언트는 최대 4개의 DNS 서버 주소를 요청할 수 있습니다.)
C. The DHCP server assigns IP addresses without requiring the client to renew them.

    (C. DHCP 서버는 클라이언트가 IP 주소를 갱신할 필요 없이 IP 주소를 할당합니다.)
D. The DHCP server leases client IP addresses dynamically.
    (DHCP 서버는 클라이언트 IP 주소를 동적으로 임대한다.)
E. The DHCP client maintains a pool of IP addresses it can assign.

    (E. DHCP 클라이언트는 할당할 수 있는 IP 주소 풀을 유지 관리합니다.)



2. Which command enables a router to become a DHCP client?

    (라우터가 DHCP 클라이언트가 될 수 있는 명령은 무엇입니까?)

A. ip address dhcp
B. ip helper-address
C. ip dhcp pool
D. ip dhcp client



3. You are configuring your edge routers interface with a public IP address for Internet connectivity.
The router needs to obtain the IP address from the service provider dynamically.
Which command is needed on interface FastEthernet 0/0 to accomplish this?

    (인터넷 연결을 위해 공용 IP 주소로 에지 라우터 인터페이스를 구성하는 중입니다.
    라우터는 서비스 공급자로부터 IP 주소를 동적으로 얻어야 합니다.
    FastEthernet 0/0 인터페이스에 필요한 명령은 무엇입니까?)

A. ip default-gateway

B. ip route
C. ip default-network
D. ip address dhcp
E. ip address dynamic

4. Which Cisco IOS command will indicate that interface Gigabit Ethernet 0/0 is configured via DHCP?

    (인터페이스 기가비트 이더넷 0/0이 DHCP를 통해 구성되었음을 나타내는 Cisco IOS 명령은 무엇입니까?)
A. show ip interface GigabitEthernet 0/0 dhcp
B. show interface GigabitEthernet 0/0
C. show ip interface dhcp
D. show ip interface GigabitEthernet 0/0
E. show ip interface GigabitEthernet 0/0 brief

5. Which command can you enter to determine the addresses that have been assigned on a DHCP Server?
    (DHCP 서버에 할당된 주소를 결정하기 위해 어떤 명령을 입력할 수 있습니까?)

A. Show ip DHCP database.
B. Show ip DHCP pool.
C. Show ip DHCP binding.
D. Show ip DHCP server statistic.

6. Which command must be entered to configure a DHCP relay?
    (DHCP 릴레이를 구성하려면 어떤 명령을 입력해야 합니까?)

A. ip helper-address
B. ip address dhcp
C. ip dhcp pool
D. ip dhcp relay

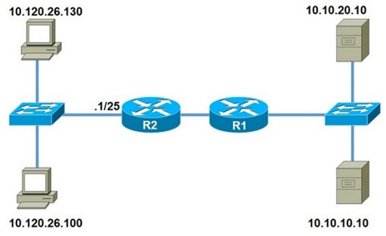

7. Users in your office are complaining that they cannot connect to the severs at a remote site.

When troubleshooting, you find that you can successfully reach the severs from router R2.
What is the most likely reason that the other users are experiencing connection failure?

    (사무실의 사용자가 원격 사이트의 서버에 연결할 수 없다고 불평하고 있습니다.
    문제를 해결하면 라우터 R2의 서버에 성공적으로 연결할 수 있습니다.
    다른 사용자에게 연결 오류가 발생할 가능성이 높은 이유는 무엇입니까?)

A. interface ports are shut down on the remote servers.

    (인터페이스 포트가 원격 서버에서 종료되었습니다.)
B. The DHCP address pool has been exhausted.

    (DHCP 주소 풀이 모두 사용되었습니다.)
C. The ip helper-address command is missing on the R2 interface that connects to the switch.

    (스위치에 연결하는 R2 인터페이스에 ip helper-address 명령이 없습니다.)
D. VLSM is misconfigured between the router interface and the DHCP pool.
    (VLSM이 라우터 인터페이스와 DHCP 풀 간에 잘못 구성되었다.)

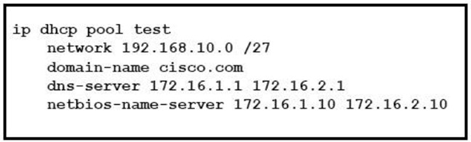

8. After you apply the given configuration to a router, the DHCP clients behind the device cannot communicate with

hosts outside of their subnet.
Which action is most likely to correct the problem?

    (지정된 구성을 라우터에 적용한 후 디바이스 뒤에 있는 DHCP 클라이언트는 서브넷 밖의 호스트와 통신할

    수 없습니다.
    어떤 조치가 문제를 해결할 가능성이 가장 높습니까?)

A. Configure the dns server on the same subnet as the clients.

    (클라이언트와 동일한 서브넷에 DNS 서버를 구성합니다.)
B. Activate the dhcp pool.

    (DHCP 풀을 활성화합니다.)
C. Correct the subnet mask.

    (서브넷 마스크를 수정합니다.)
D. configure the default gateway.

    (기본 게이트웨이를 구성합니다.)

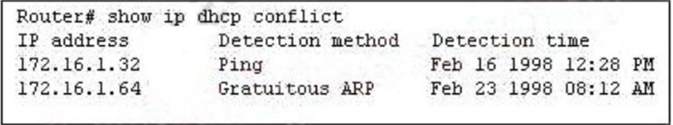

9. Which rule does the DHCP server use when there is an IP address conflict?

    (IP 주소가 충돌할 때 DHCP 서버가 사용하는 규칙은 무엇입니까?)

A. The address is removed from the pool until the conflict is resolved.
    (주소는 충돌이 해결 될 때까지 풀에서 제거된다.)
B. The address remains in the pool until the conflict is resolved.

    (충돌이 해결될 때까지 주소는 풀에 남아 있습니다.)
C. Only the IP detected by Gratuitous ARP is removed from the pool.

    (무료 ARP에 의해 감지된 IP만 풀에서 제거됩니다.)
D. Only the IP detected by Ping is removed from the pool.

    (Ping에 의해 탐지된 IP만 풀에서 제거됩니다.)
E. The IP will be shown, even after the conflict is resolved.

    (충돌이 해결된 후에도 IP가 표시됩니다.)


10. Which type of information resides on a DHCP server?
    (DHCP 서버에 어떤 유형의 정보가 있는가?)
A. a list of the available IP addresses in a pool
    (풀에서 사용 가능한 IP 주소 목록)
B. a list of public IP addresses and their corresponding names.

    (공용 IP 주소 목록 및 해당 이름)
C. usernames and passwords for the end users in a domain.

    (도메인의 최종 사용자에 대한 사용자 이름 및 암호)
D. a list of statically assigned MAC addresses.

    (정적으로 할당된 MAC 주소 목록)

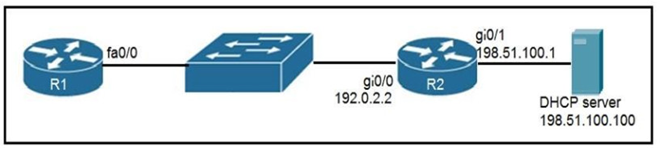

11. An engineer deploys a topology in which R1 obtains its IP configuration from DHCP.

If the switch and DHCP server configurations are complete and correct. Which two sets of commands must be

configured on R1 and R2 to complete the task? (Choose two)
    (엔지니어는 R1이 DHCP에서 IP 구성을 가져 오는 토폴로지를 배포한다. 스위치 및 DHCP 서버 구성이 완전하고

     올바른 경우. 작업을 완료하기 위해 R1 및 R2에서 구성해야하는 두 가지 명령 세트는 무엇인가?)

B. R2(config)# interface gi0/0
R2(config-if)# ip helper-address 198.51.100.100
C. R1(config)# interface fa0/0
R1(config-if)# ip address dhcp
R1(config-if)# no shutdown

12. What is a DHCP client?

    (DHCP 클라이언트란?)

A. a workstation that requests a domain name associated with its IP address.

    (IP 주소와 연결된 도메인 이름을 요청하는 워크스테이션)
B. a host that is configured to request an IP address automatically
    (IP 주소를 자동으로 요청하도록 구성된 호스트)
C. a server that dynamically assigns IP addresses to hosts.

    (호스트에 IP 주소를 동적으로 할당하는 서버.)
D. a router that statically assigns IP addresses to hosts.

    (호스트에 IP 주소를 정적으로 할당하는 라우터.)



13. Where does the configuration reside when a helper address Is configured to support DHCP?
    (helper주소가 DHCP를 지원하도록 구성된 경우 어디에 구성해야 하는가?)

A. on the router closest to the server.

    (서버에 가장 가까운 라우터)
B. on the router closest to the client.

    (클라이언트에 가장 가까운 라우터)
C. on every router along the path.

    (경로를 따라 모든 라우터)
D. on the switch trunk interface.

    (스위치 트렁크 인터페이스)

14. When implementing a router as a DHCP server, which two features must be configured? (Choose two)
    (라우터를 DHCP 서버로 구현할 때 어떤 두 기능을 구성해야 하는가? (2 개 선택))
A. relay agent information

    (릴레이 에이전트 정보)
B. database agent

    (데이터베이스 에이전트)
C. address pool

    (주소 풀)
D. smart-relay

    (스마트릴레이)
E. manual bindings

    (수동(고정)으로 IP 설정)
