[네트워크관리사]Router Quiz 15

Q>

Router 의 Interface Serial 2/0을 활성화 시키고 저장하시오.



A>

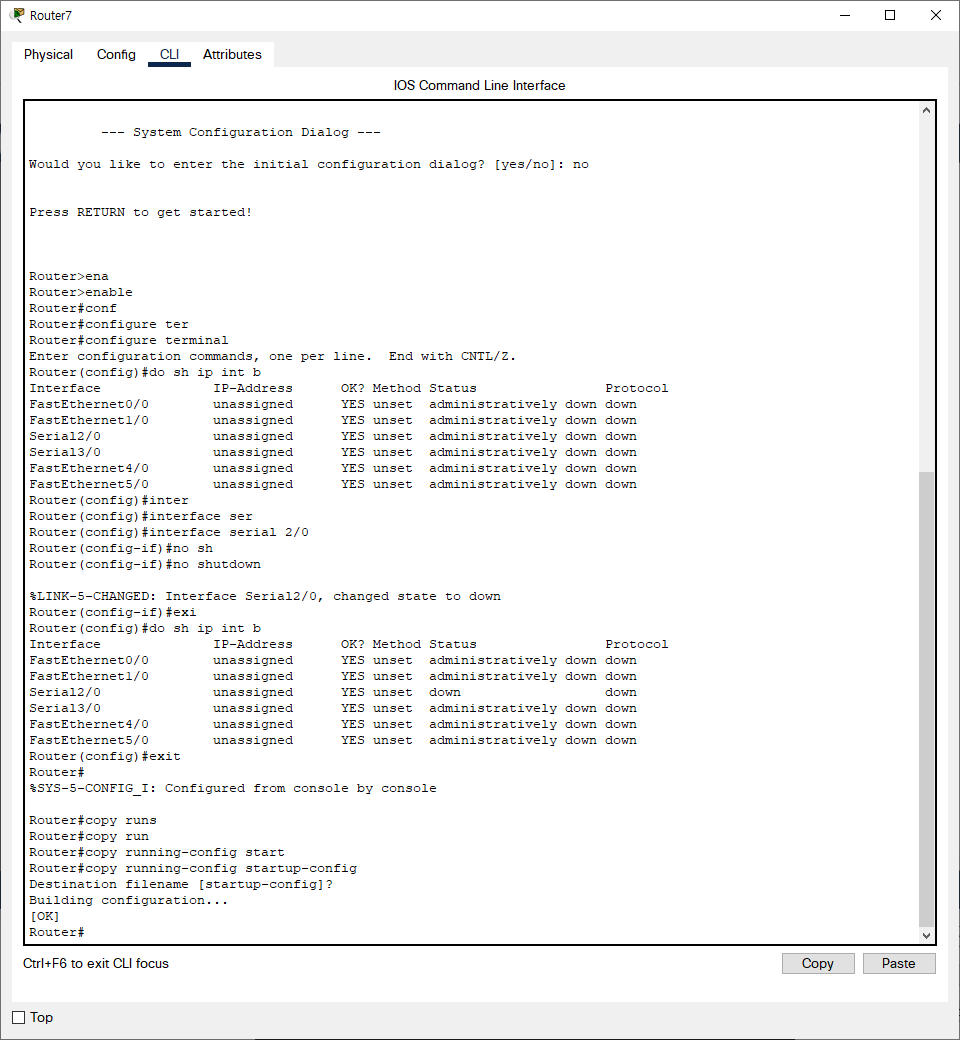

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#do sh ip int b
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        unassigned      YES unset  administratively down down
FastEthernet1/0        unassigned      YES unset  administratively down down
Serial2/0              unassigned      YES unset  administratively down down
Serial3/0              unassigned      YES unset  administratively down down
FastEthernet4/0        unassigned      YES unset  administratively down down
FastEthernet5/0        unassigned      YES unset  administratively down down
Router(config)#interface serial 2/0
Router(config-if)#no shutdown

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit
Router(config)#do sh ip int b
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        unassigned      YES unset  administratively down down
FastEthernet1/0        unassigned      YES unset  administratively down down
Serial2/0              unassigned      YES unset  down                  down
Serial3/0              unassigned      YES unset  administratively down down
FastEthernet4/0        unassigned      YES unset  administratively down down
FastEthernet5/0        unassigned      YES unset  administratively down down
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console

Router#copy runs
Router#copy run
Router#copy running-config start
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
