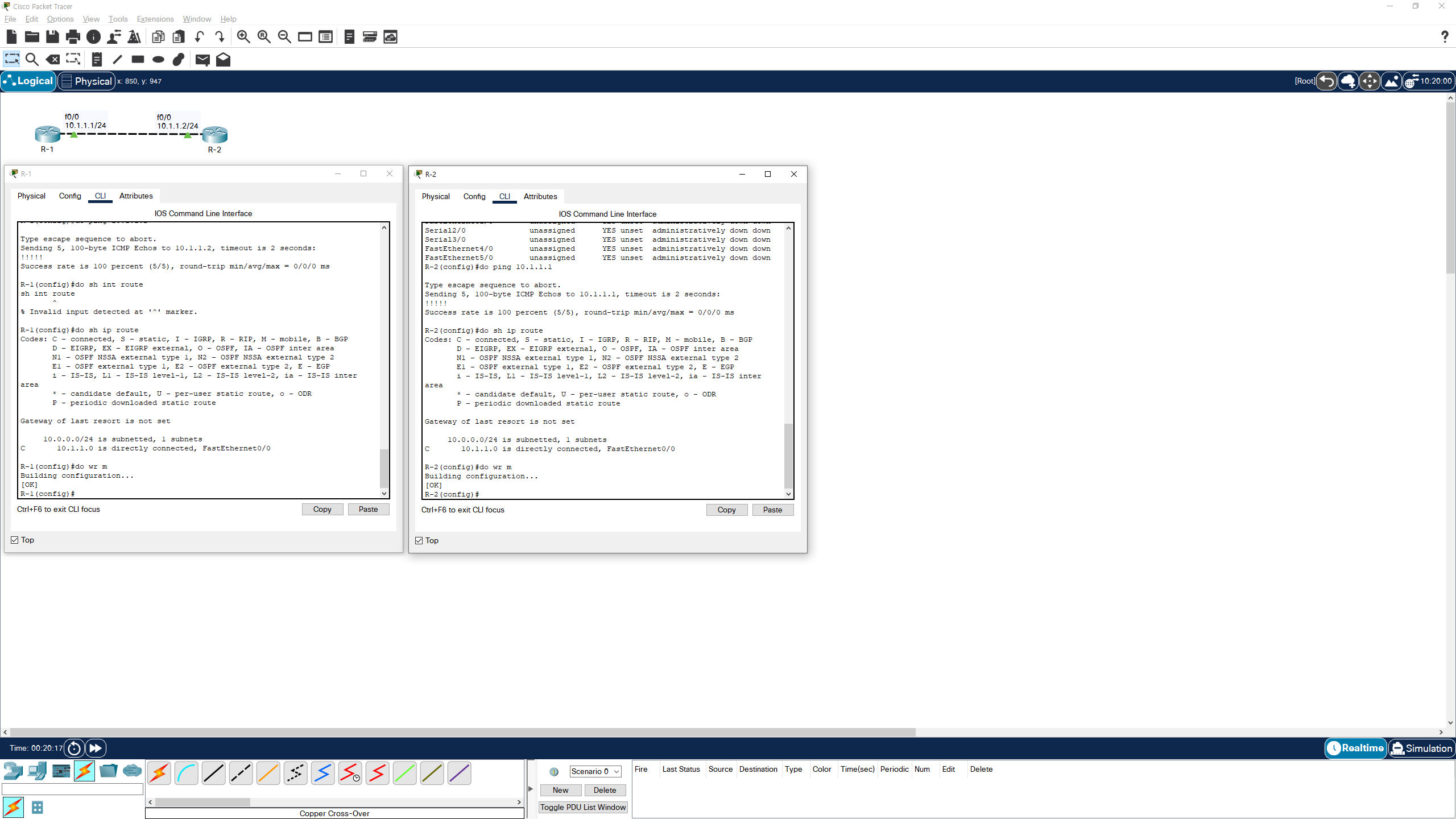

[CCNA]패킷트레이서 기초 1(Router - Router)

1. 라우터 케이블 연결

- 같은 계층 장비이므로 크로스 케이블로 연결



2. Hostname 설정

- Router 1 -> R-1

Router>en
Router#conf t
Router(config)#hostname R-1

- Router 2 -> R-2

Router>en
Router#conf t
Router(config)#hostname R-2



3. IP 주소 설정

- Router 1 -> 10.1.1.1

Router>en
Router#conf t
R-1(config)#do sh ip int br
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        unassigned      YES unset  administratively down down
FastEthernet1/0        unassigned      YES unset  administratively down down
Serial2/0              unassigned      YES unset  administratively down down
Serial3/0              unassigned      YES unset  administratively down down
FastEthernet4/0        unassigned      YES unset  administratively down down
FastEthernet5/0        unassigned      YES unset  administratively down down
R-1(config)#int f0/0
R-1(config-if)#ip add 10.1.1.1 255.255.255.0
R-1(config-if)#no sh
R-1(config-if)#exi
R-1(config)#do sh ip int br
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        10.1.1.1        YES manual up                    down
FastEthernet1/0        unassigned      YES unset  administratively down down
Serial2/0              unassigned      YES unset  administratively down down
Serial3/0              unassigned      YES unset  administratively down down
FastEthernet4/0        unassigned      YES unset  administratively down down
FastEthernet5/0        unassigned      YES unset  administratively down down
R-1(config)#

- Router 2 -> 10.1.1.2

Router>en
Router#conf t
R-2(config)#do sh ip int br
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        unassigned      YES unset  administratively down down
FastEthernet1/0        unassigned      YES unset  administratively down down
Serial2/0              unassigned      YES unset  administratively down down
Serial3/0              unassigned      YES unset  administratively down down
FastEthernet4/0        unassigned      YES unset  administratively down down
FastEthernet5/0        unassigned      YES unset  administratively down down
R-2(config)#int f0/0
R-2(config-if)#ip add 10.1.1.2 255.255.255.0
R-2(config-if)#no sh
R-2(config-if)#exi
R-2(config)#do sh ip int br
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        10.1.1.2        YES manual up                    down
FastEthernet1/0        unassigned      YES unset  administratively down down
Serial2/0              unassigned      YES unset  administratively down down
Serial3/0              unassigned      YES unset  administratively down down
FastEthernet4/0        unassigned      YES unset  administratively down down
FastEthernet5/0        unassigned      YES unset  administratively down down
R-2(config)#



4. 서로 Ping 여부 확인

- Router 1

R-1(config)#do ping 10.1.1.2

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 0/0/0 ms

R-1(config)#

- Router 2

R-2(config)#do ping 10.1.1.1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 0/0/0 ms

R-2(config)#



5. 라우팅 테이블 정보 확인

- Router 1

R-1(config)#do sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default, U - per-user static route, o - ODR
       P - periodic downloaded static route

Gateway of last resort is not set

     10.0.0.0/24 is subnetted, 1 subnets
C       10.1.1.0 is directly connected, FastEthernet0/0

R-1(config)#

- Router 2

R-2(config)#do sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default, U - per-user static route, o - ODR
       P - periodic downloaded static route

Gateway of last resort is not set

     10.0.0.0/24 is subnetted, 1 subnets
C       10.1.1.0 is directly connected, FastEthernet0/0

R-2(config)#



6. NVRAM 저장

- Router 1

R-1(config)#do wr m
Building configuration...
[OK]
R-1(config)#

- Router 2

R-2(config)#do wr m
Building configuration...
[OK]
R-2(config)#
